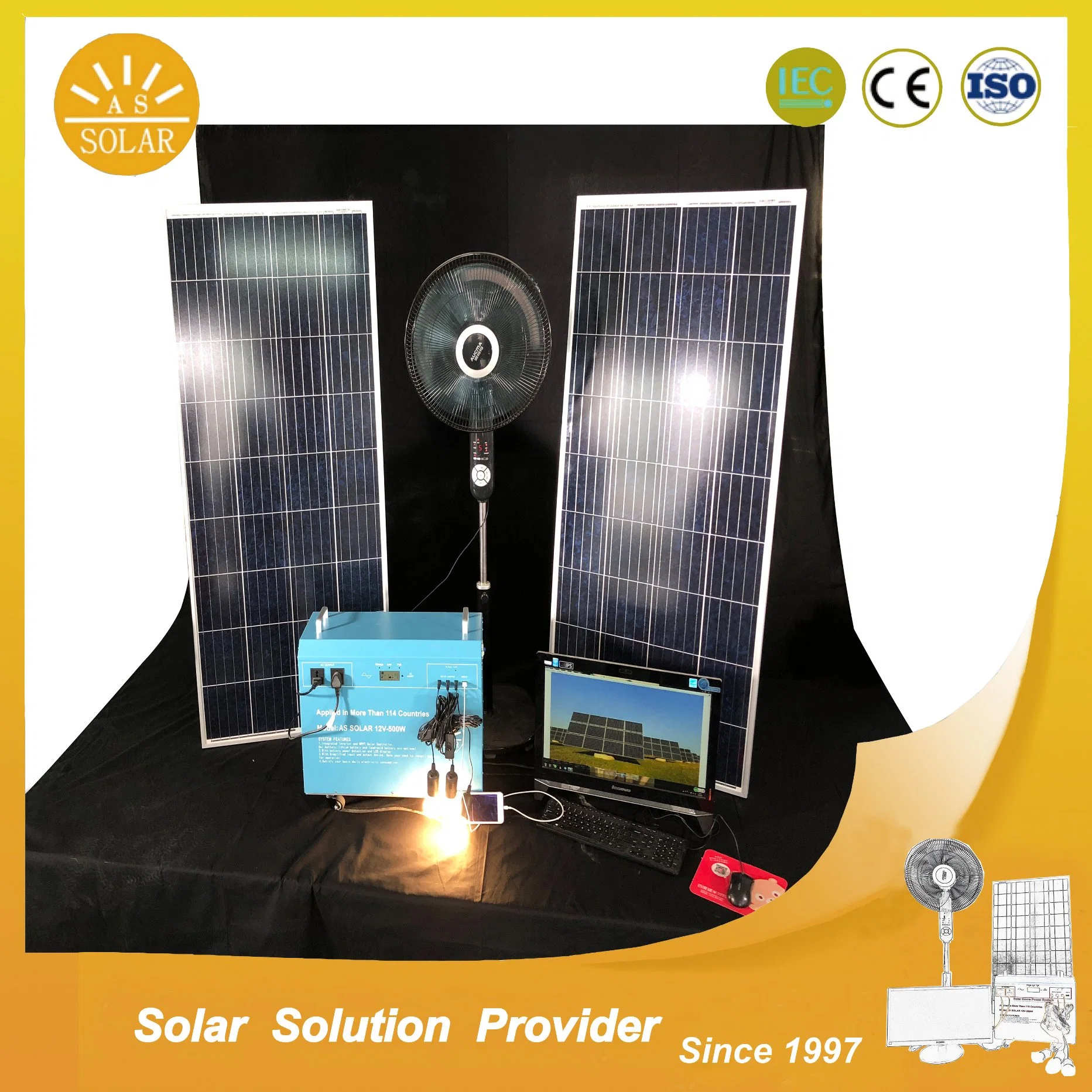

AS 300W/500W Solar Home Lighting Kits
The system allocates high capacity battery, lighting time when fully charged please see the chart as below.
Working condition | Lighting time when fully charged |
DC | 40 hours |
AC | 3.5Hrs Including Electrical Fan and Notebook |
System charged
Charge the system by using solar panel, you can refer to the below steps:
- Place the Solar Panel in the sun where can receive the strongest sunlight
- Plug the panel cable into the socket which marked, when indicator light twinkles slowly, that means charging normally.
Operation steps :
1.Plug the USB into the port which marked
2.Connect the mobile phone through the connector.
Specification
Controlling Box | 300W-1000W |
Solar Panel | 50W-200W/18V Vmp: 17.8V; lmp:2.25A; Voc:21.6V; Isc:2.41A Weight:3.60kg |
Panel Cable | 5M Length |
Battery | 12V/42AH Lead-acid |
Bulbs | 2 Pcs LED Bulbs |
Bulb Cable | 2*10M Length |
USB Output | 5.2V/1000ma |
Carton Size | 455*280*417mm |
Net weight | 25kg |
Gross Weight | 26.5kg |
Battery maintenance and using skill
The system uses a 12V 42Ah lead-acid Maintenance- Free rechargeable battery
In order to keep the longest lifespan.
1. Please don't keep the battery in over- discharged status for a long time.
2. Please charge the battery at least one time every 3 months, even you don't use it .
3. When replace battery, please only use 12V lead-acid battery, and under guiding by
professional person.
Production And Testing:
Projects Of AS SOLAR:
Our Projects are applied all around the World
We Choose A Quality Material, Quality Is Our Culture.So Our Solar Products Have Been Successfully Applied In More Than 110 Countries Including UN Projects and NGO Projects.
Certificates Of AS SOLAR:
Our Company:
We would introduce ourselves as industrial, Design Solutions & Original Supplier who have been specializing in Solar industry and manufacturer of SSL (Solar Street Lighting) more than 11 years.
Our Competitive Products:
1.Solar Street Lights & LED Street Lighting 15W-150W;
2.Solar Garden Lights & Solar Landscape Lights 5W-30W;
3.Solar Battery: 4.5Ah-250Ah/12V, 200Ah-3000Ah/2V;
4.Solar Panels & Solar Modules 5W-360W Poly & Mono ;
5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;
6.Solar Home Lighting System/Kits : 5W-10KW With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;
Payment Terms and Delivery:
Payment Terms | T/T | EXW | 30% In Advance, 70% Balance Paid Before Delivery |
FOB | |||
CFR/C&F | 30% In Advance, 70% Against Copy Of B/L | ||
CIF | |||
L/C | Total Amount Above USD100,000, We Accept L/C At Sight | ||
West Union | Total Amount Less Than USD1,000 | ||
PayPal | |||
Delivery Time | 15-20 Working Days After Receiving Down Payment |
As ISO9001,CE,IEC,RoHS,SONCAP,CCC approved manufacturer and exporter in China,We are good at Solar Home Power,Solar Home Lighting System,All In One Solar Street Lights,LED Street Lights,Solar Battery&UPS Battery,Lithium Battery,Solar Traffica Lights.
