Specifications:

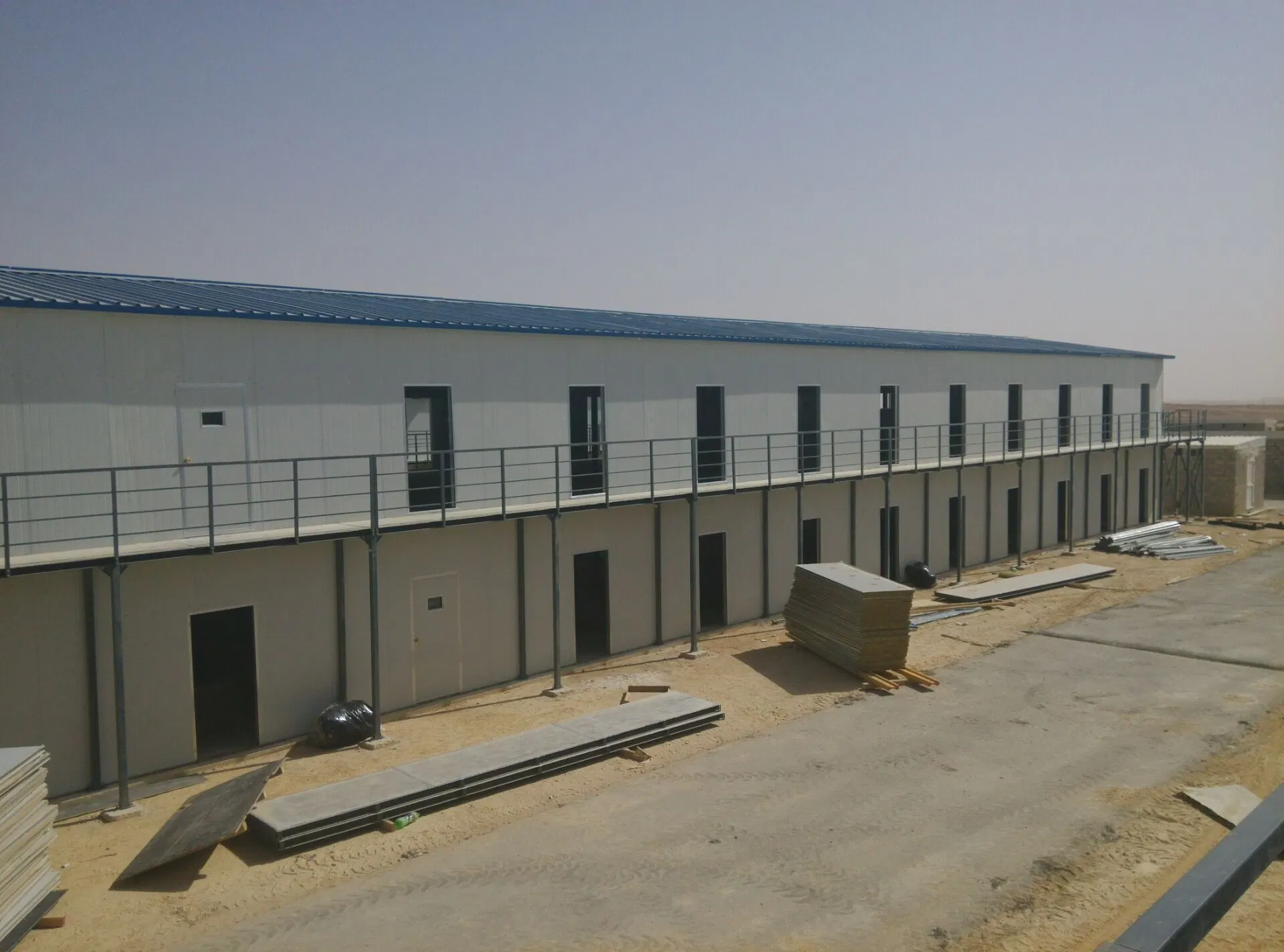

General technical description for standard prefabricated house worker camp
Technical Parameter of standard prefabricated house:
1. Wind resistance: Grade 11(wind speed≤ 120km/h)
2. Earthquake resistance: Grade 7
3. Live load capacity of roofing: 0.6kn/m2
4. External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
5. Second Floor Load Capacity: 150 kg/m2
6. Live load of corridor is 2.0kn/ m2
7. Wall permitted loading: 0.6KN/ m2
8. Ceiling Permitted live loading: 0.5 KN/m2
9. Wall Coefficient of thermal conductivity: K=0.442W/m2k
10. Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K
Product description:
Our services:
1. Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.

Company information:
Established in 1995, LIDA Group -Weifang Henglida Steel Structure is one of the biggest manufacturer of prefabricated building in China, We have been awarded ISO9001-2000,CE and SGS certficates.Our daily capacity can reach 5000sqm and this is how we manage it.
750 employees, including 50 engineers and 200 workers in charge of supervising overseas projects.
73000sqm meters of factory space.
3 production lines for our prefabricated house series.
3 production lines for our container house series.
2 production lines for our steel structure warehouse/workshop series
1 production line for our light steel Villa series ovrseas branch office in Saudi Arabia, Qatar.

Steel framework:
1. Main column: Fabricated by 80*80 or 100*100 or 120*120 or 150*150 Square Tube, Q235 Steel Surface working: Alkyd painting, two primary and two surface.
2. Main triangle Beam: Fabricated by C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Alkyd painting, two primary and two surface.
3. Wall and roof purlin: C80, C100, C120, C140 Section steel, Q235 Steel, Surface working: Galvanized

Floor:
Groud floor will be the concrete foundation with Ceramic tiles or PVC floor leather. First floor: 18mm plywood with 2.0mm PVC floor leather for living rooms floor

Ceiling:
Construction: 6mm Gypsum board for dry room 12mm PVC ceiling for wet room

Walls:
Insulated Steel Sandwich Panel wall Panel width: 950mm; Thickness: 50-120mm. Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm Insulation: Polystyrene, Rockwool or Polyurethane Density of Rockwool: 120Kg/m3 Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 Density of Polyurethane: 40Kg/m3

Door:
External door: Insulated with opening dimension 950*2100mm, furnished with lock with 3 keys. Inner door: Insulated steel door.
Windows:

Window material: PVC window with fly screen, 4mm glass.

Electrical fittings option:
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units. 16A five hole universal socket. Double tube fluorescent lamp, 220V, 50-60HZ Single Switch, Honyar brand, with junction box Electrical distribution box, box+breakers+earth leakage protective device.
Optional Water system fittings:
Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years. Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC Sanitary ware: Western Close tool: Ceramic, with pipes and installation fittings Urinal: Ceramic, with pipes and installation fittings Wash basin: Ceramic, with post, faucet, pipes and installation fittings Shower head, Shower base, Water mixture.
